Nasal Cannulas

NASAL HIGH-FLOW OXYGEN THERAPY

Nasal Cannulas

Nasal oxygen insufflation is a young, non-invasive form of therapy for clinical use in children and adults. With nasal oxygen insufflation, heated breathing gas is administered at a high flow rate through specially designed nasal cannulas. This form of oxygen delivery is called Nasal High-Flow Oxygen Therapy (NHFOT).

Nasal cannulas specifically designed for nasal high-flow oxygen therapy reduce anatomical dead space, increase alveolar oxygen concentration, improve oxygenation and facilitate breathing while reducing FiO2. All advantages of the NHFOT at a glance:

Advantages:

Flow rates up to 60 L/min
Optimally conditioned breathing gas
Low PAP
Reduced dead space in the nasopharynx
Improved patient comfort, compliance and oxygenation
Reduction of CO2
Allows drinking, eating, talking and sleeping

Application:

Acute hypoxemic respiratory failure
Asthma
Cardiogenic pulmonary edema
Pneumonia
Carbon monoxide poisoning
Respiratory distress syndrome after extubation
Non-intubable (DNI)
After cardiac surgery

WILAmed offers a wide range of nasal cannulae for use in nasal high-flow oxygen therapy: from low flow rates when ventilating the smallest patients to very high flow rates for adults.

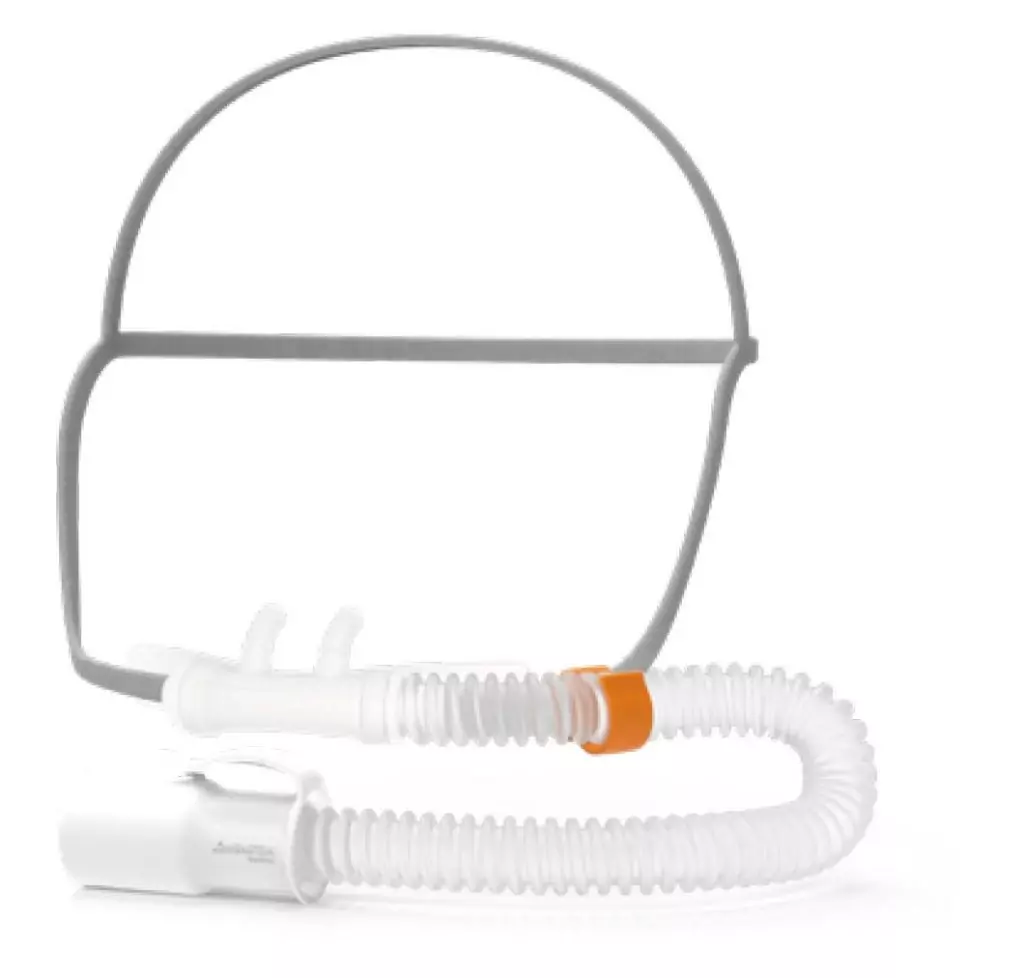

Nasal cannulas for NHFOT

WILAhiflow Mini

Patient groupChildren
Flow rateSize S: max 8 l/min; Size M: max. 20 l/min; SizeL: max. 25 l/min
Operating temperature+18°C to +26°C (+64°F to +79°F)
Oxygen concentration100% at a flow rate up to 25 L/min
ConnectorConical connector 22/15 mm (ISO 5356-1)

WILAhiflow Maxi

Patient groupAdults
Flow rate≤ 60 L/min
Operating temperature+18°C to +35 °C (+64°F to +95°F)
Oxygen concentration100% at a flow rate up to 60 L/min
ConnectorConical connector 22/15 mm (ISO 5356-1)

WILAhiflow Mini Plus

Patient groupChildren
Flow rate2 ~ 10 L/min, 2 ~ 20 L/min, 2 ~ 25 L/min
Patient’s Weight Range2 ~ 8 Kg, 3 ~ 15 Kg, 12 ~ 22 Kg
Sizessmall, medium, large
Colorsyellow, blue, green

Product information

PRODUCT INFO SHEET

WILAhiflow Mini

PDF, 237 KB

PRODUCT INFO SHEET

WILAhiflow Maxi

PDF, 257 KB

PRODUCT INFO SHEET

WILAhiflow Mini Plus

PDF, 257 KB
