AIRcon Gen2


AIRcon Gen2 Respiratory Humidifier

Thanks to its technical innovations, the AIRcon Gen2 is suitable for almost any application requiring reliable active humidification: from low flow rates for ventilation of the smallest patients to very high flow rates for adults in the context of nasal high-flow O2 therapy.

The AIRcon Gen2

provides everything you need:

ease of use
simplicity of operation & self-explanatory symbols
ease of maintenance and servicing
energy efficiency
long term reliability

Developed for the highest demands on performance and cost efficiency

The AIRcon Gen2 humidifier is the first choice for healthcare professionals – whether in critical care or home ventilation. The bright modern design of the AIRcon Gen2 combines perfectly with any ventilator.

Maximum flexibility

Three operating modes (IV, HFT/NIV, FREE)
Use in clinical and non-clinical areas
Automatic dimming for operation in night mode
More than 300 ventilation therapy systems for individual patient needs

7 unique features

Automatic chamber detection
Water level detection
Individual control of the expiratory heating wire
Event and alarm log
Automatic power adjustment
Manual power setting
Setting the humidification output in three stages


Best in class alarm management
IR water level monitoring (High- and Low)
Event- and alarm protocol with download option to PC
Real-time temperature and humidity level monitoring
Automatic shut-off when alarms are being ignored

High Quality

Industry leader in terms of total product life cycle costs
Manufactured “Made in Germany”

“As a leading manufacturer of respiratory gas humidification systems for more than 20 years, WILAmed has the technology and application expertise to meet the needs of any respiratory application.”

Everything from one source

In combination with its specially designed humidifier chambers and heated wire breathing systems, the AIRcon Gen2 provides a complete respiratory gas humidifying system at your disposal for patients in need of invasive- or non-invasive ventilation for their treatment. Our heated wire breathing systems (single and double limb) are applicable to neonates, children and adults. We offer configuration for clinical and extra-clinical use for all common ventilators.

Scope of Delivery

101200AIRcon Gen2 humidifier, 230V
101201AIRcon Gen2 humidifier, 115V
100910temperature probe, 160cm
100909temperature probe, 180cm
100929heating wire adapter (inspiratory + expiratory)
100942heating wire adapter (inspiratory)
100930country-specific power cord

Accessories and Mounting

500186WILAqua, sterile water 1000ml bottle
500350WILAmed C200R humidifier chamber, autoclavable
550226bracket (diameter 25mm) for standard rail (30mm x 10mm)
550301pole clamp bracket for columns (25mm x 45mm)
550220mounting kit for standard rail

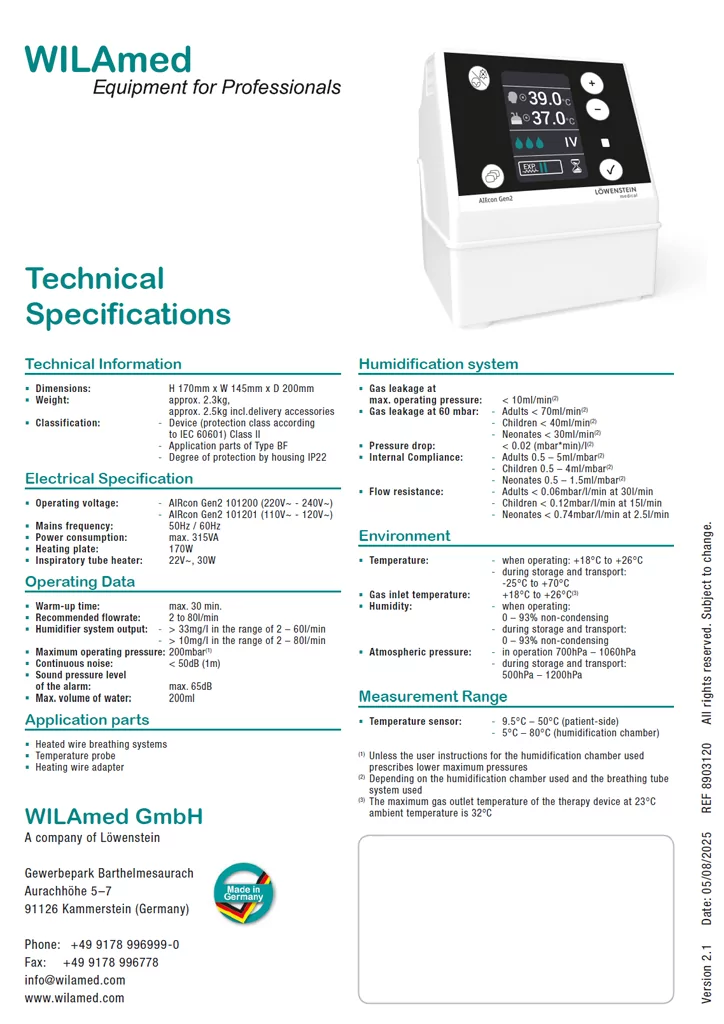

Product information


AIRcon Gen2

PDF, 380 KB


AIRcon Gen2

PDF, 269 KB
